液壓配件與維修

產品描述

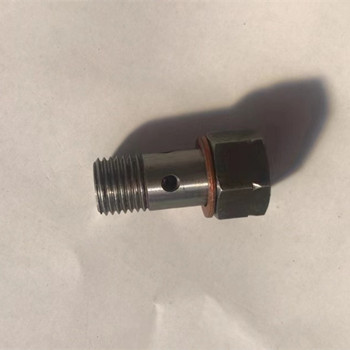

限壓閥與機油泵油路并聯，其作用是調節、控制主油道的機油壓力。為了保證發動機正常工作，主油道的油壓必須適當，通過機油泵限壓閥能調節主油道的機油壓力。當發動機轉速增高或機油稠度變大時，機油壓力就會增高。此時限壓閥自動開啟，通過機油泵回油(即機油泵出油口的機油經限壓閥流向進油口)，能控制主油道的油壓。旁通閥并聯在機油粗濾器上，其作用是當濾清器使用的時間超過了更換期之后，紙濾芯被污垢或異物嚴重堵塞，循環油不能通過濾芯時，為了防止出現潤滑系統供油中斷，機油粗濾器上旁通閥自動開啟，機油經旁通閥直接流入主油道，這樣發動機壓力潤滑部分不會出現斷油的現象。

免責聲明丨 部分內容來源網絡！本文僅供交流學習 , 版權歸屬原作者，部分圖片、內容推送時未能及時與原作者取得聯系，若來源標注錯誤或侵犯到您的權益煩請告知，我們將立即刪除.

QQ郵箱：2870202745@qq.com

網易郵箱：LS13645201509@163.com

The pressure limiting valve is connected in parallel with the oil circuit of the oil pump, and its function is to regulate and control the oil pressure in the main oil passage. In order to ensure the normal operation of the engine, the oil pressure in the main oil passage must be appropriate, and the oil pressure in the main oil passage can be adjusted through the oil pump pressure limiting valve. When the engine speed increases or the oil viscosity increases, the oil pressure will increase. At this time, the pressure limiting valve automatically opens, and the oil pressure in the main oil passage can be controlled through the oil pump return (i.e., the oil from the oil pump outlet flows through the pressure limiting valve to the oil inlet). The bypass valve is connected in parallel to the oil coarse filter. Its function is to prevent the interruption of lubrication system oil supply when the paper filter element is severely blocked by dirt or foreign objects after the filter has been used for more than the replacement period. In order to prevent the interruption of lubrication system oil supply, the bypass valve on the oil coarse filter automatically opens, and the oil flows directly into the main oil passage through the bypass valve. This way, the pressure lubrication part of the engine will not experience oil interruption.

Disclaimer | Part of the content is sourced from the internet! This article is for communication and learning purposes only, and the copyright belongs to the original author. Some images and content were not promptly communicated to the original author. If the source labeling is incorrect or infringes on your rights, please inform us and we will immediately delete it

Enterprise Introduction

The company supplies paver accessories, roller accessories, milling machine accessories, paver scraper drive shaft, scraper drive shaft assembly, leveling instrument, leveling instrument bracket, hydraulic pump and accessories. We also supply vulnerable parts for pavers, balance beams, agitator shafts, pedals, feeding soleplates, blades, ironing plates, reducers, chain tracks, track shoes, supporting wheels, scraper chains, feeding chains, etc.

Contact person: Manager Liang

Contact information: 13645201509

(Same WeChat account)

QQ: 2870202745

QQ email: 2870202745@qq.com

NetEase email: LS13645201509@163.com
